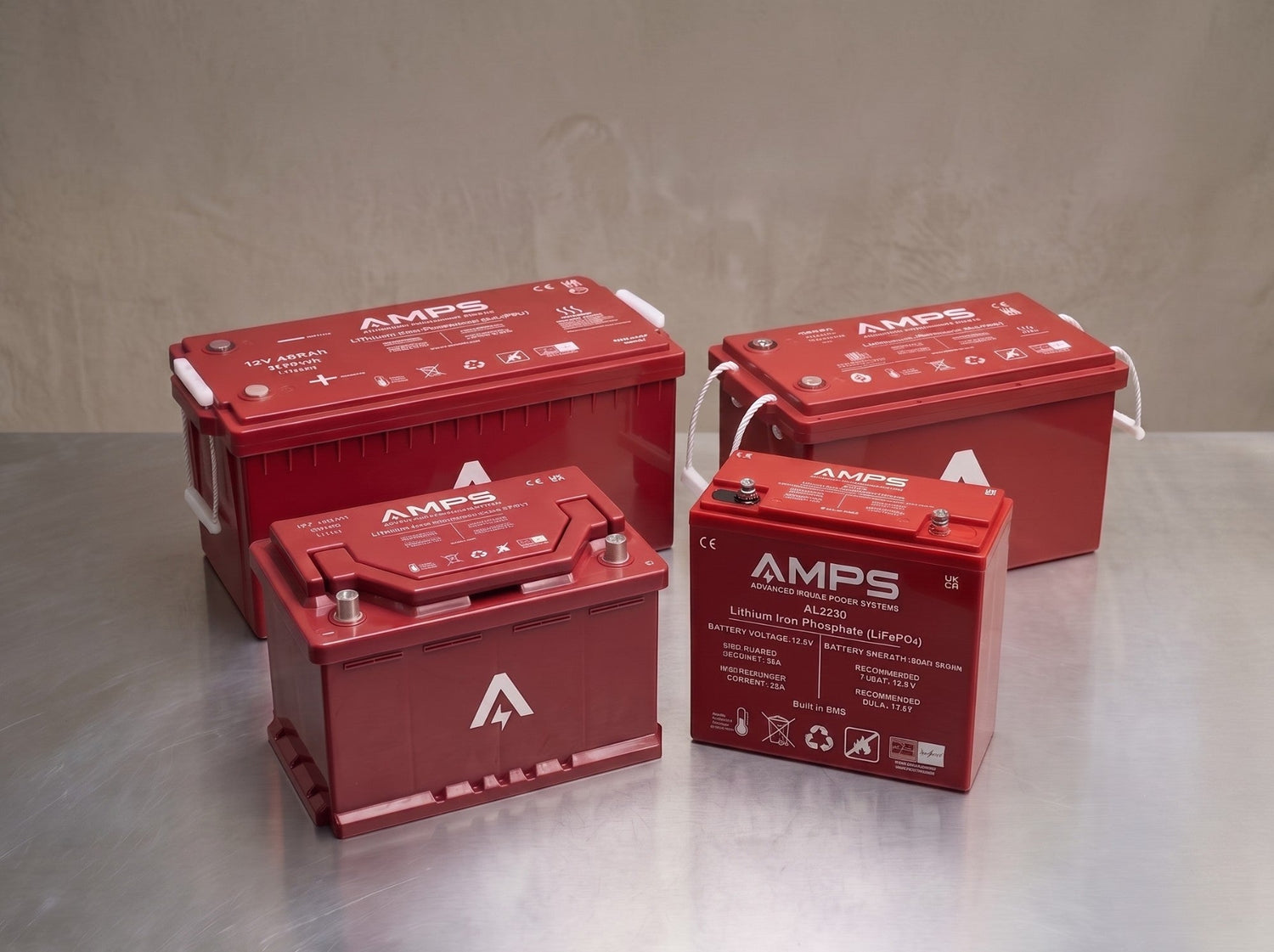

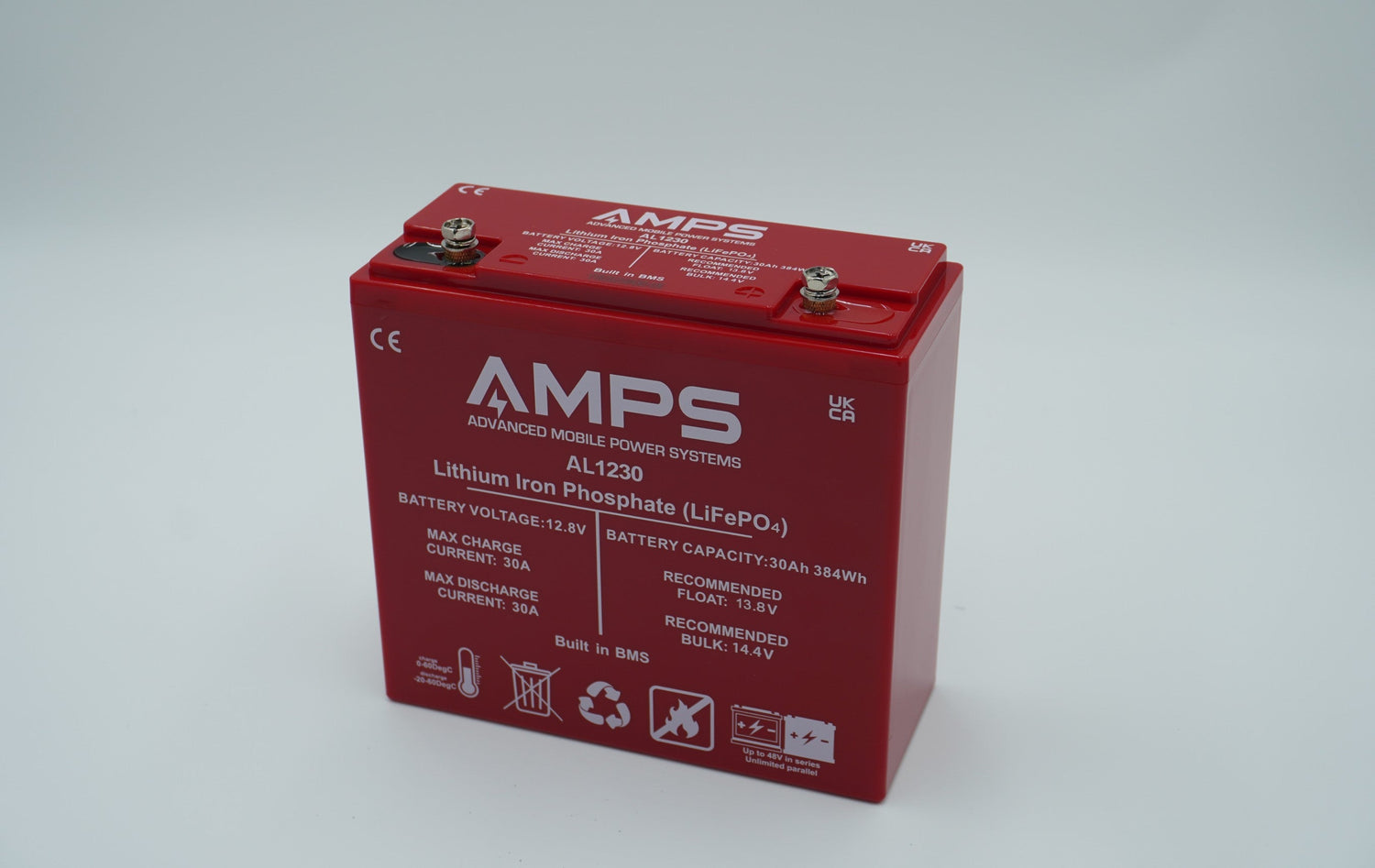

Lithium Batteries 12V Leisure Battery (5 Year Warranty)

£81.60

AL series LiFePO4 - Lithium Iron Phosphate batteries.

Spec list

Charge Discharge
Part No Ah Capacity Charge V Current (A) (max) Current (A) (max) Bluetooth Series limit Dimensions (cm) LWH Weight (Kg) Battery Terminal
AL1220 20Ah <14.4V 20A 40A no 48V 19 x 7.7 x 18.7 2 M5 5mm
AL1260 60Ah <14.4V 50A 120A yes 48V 28 x 17.6 x 17.2 6 T1 DIN
AL1275 75Ah <14.4V 40A 80A yes 48V 28 x 17.6 x 17.2 8 T1 DIN
AL1280 80Ah <14.4V 60A 140A yes 48V 26 x 21 x 16.5 11 8mm M8
AL2450 50Ah <28.8V 40A 80A yes 48V 26 x 21 x 16.5 11 8mm M8
AL12100 100Ah <14.4V 100A 100A yes 48V 26 x 17 x 21 9.6 8mm M8
AL12120 120Ah <14.4V 80A 150A yes 48V 41 x 23.5 x 17 15 8mm M8
AL12150 150Ah <14.4V 80A 150A yes 48V 41 x 23.5 x 17 18 8mm M8
AL12200 200Ah <14.4V 150A 300A yes 48V 53.2 x 23.7 x 21.5 22 8mm M8
AL12300 300Ah <14.4V 150A 300A yes 48V 53.2 x 23.7 x 21.5 28 8mm M8
AL24150 150Ah <28.8V 80A 150A yes 48V 53.2 x 23.7 x 21.5 34.5 8mm M8
AL12400 400Ah <14.4V 150A 200A yes 48V 52 x 26.7 x 22 42 8mm M8
AL48100 100Ah <57.6V 50A 100A yes 48V 52 x 26.7 x 22 42 8mm M8
L12100 105Ah <14.4V 100A 100A no 48V 28 x 17.6 x 17.2 9.6 8mm | T1DN

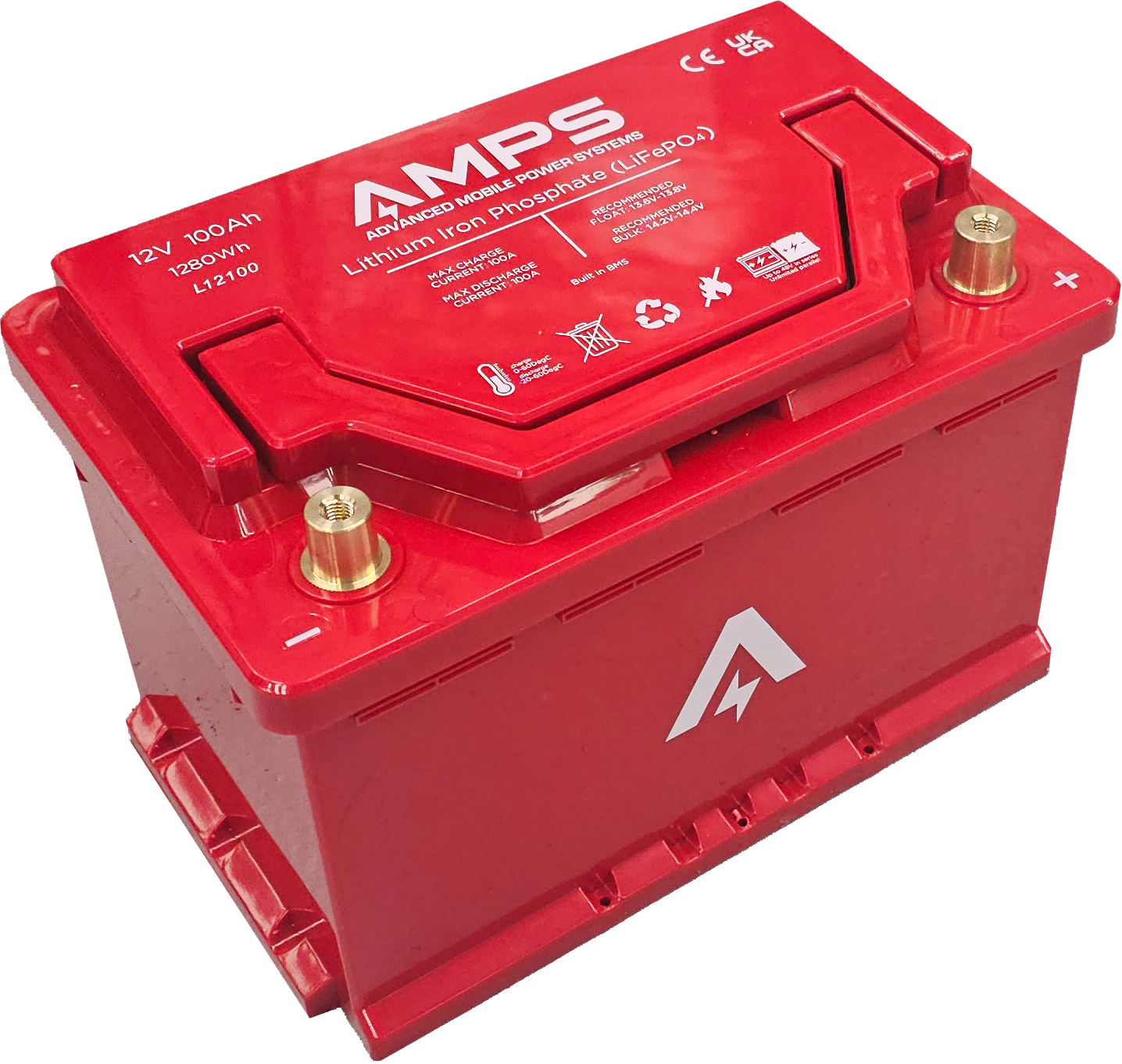

The latest 12V 100Ah AL12100 - JBD app can be found here:

https://play.google.com/store/apps/details?id=com.jiabaida.little_elephant



12V Lithium Batteries w/ Bluetooth BMS (except 20Ah model). Leisure Battery.

App can be downloaded here: SMART BMS for Android

App can be downloaded here for APP: APPLE app

60Ah | 75Ah | 80Ah | 100Ah | 120Ah | 150Ah | 200Ah | 300Ah | 400Ah | 24V 150Ah | 48V 100Ah - have bluetooth

20Ah model - does not have bluetooth function

Can be put in series up to 48V -unlimited parallel.

Limited five year warranty from date of purchase covers the purchaser/protects you against manufacturing defects. It does not cover negligence, improper use, natural expected changes in capacity or the operation of bluetooth (either the app itself or the connectivity to the app): - Please note, we can not ship these to the European Union, yet. We are working on getting this sorted.



Part No Nominal Voltage Charge Current Discharge current Nominal Capacity Actual Capacity
AL1220 12V 10A 20A 20Ah 20Ah
AL1260 12V 50A 120A 60Ah 60Ah
AL1280 12V 60A 140A 80Ah 86Ah
AL12100 12V 70A 150A 100Ah 100Ah
AL12120 12V 80A 150A 120Ah 120Ah
AL12150 12V 100A 150A 150Ah 150Ah
AL12200 12V 150A 300A 200Ah 200Ah
AL12300 12V 150A 300A 300Ah 300Ah
AL2450 24V 80A 40A 50Ah 50Ah
AL24150 24V 80A 150A 150Ah 150Ah
AL48100 48V 100A 100A 100Ah 102Ah

12V 150Ah model is in the same box as the 120Ah battery. We have just managed to fit more cells into the same volume. Therefore, you get higher energy density.





Battery Information PDF - including Bluetooth

We are constantly updating our battery range and specifications.

The battery information PDF is prone to change. We endeavour to keep this updated.



Instructions





12V 60Ah / 80Ah / 100Ah / 120Ah Lithium Iron Phosphate Battery with BMS and safety shutdown

general specs:

  • LiFePO4 12V (nominal) 60Ah / 80Ah / 100Ah / 120Ah / 150Ah / 200Ah / 24V 150Ah 25 deg C Lithium Deep cycle
  • Maximum continuous charge rate  = 50A / 60A / 70A / 80A /100A
  • Maximum continuous discharge rate  =120A / 140A / 150A / 150A / 200A
  • Battery must be safely charged within units parameters
  • Max charge V=14.6V, Recommended =14.4V, Float V=13.8V
  • Cut off voltage 11V / cutoff temperature 60 deg C
  • Charge Curve style  CC/CV
  • Operational temperature 0Deg to 60 deg C (adjustable)
  • internal consumption: Operational = 10mA, Dormant 0.1mA
  • 8mm ring terminal battery studs / washer
  • Can be put in series 12V | 24V | 36V | 48V

    E marking - E13 - only battery on UK market.

     Battery power Weight of battery (kg) Dimension of battery (cm)
    12V 100Ah 9.6 26.0L x 17.0W x 21.0H
    Battery power Weight of battery (kg) Dimension of battery (cm)
    12V 120Ah 12 41.0L x 17.0W x 23.5H
    Battery power Weight of battery (kg) Dimension of battery (cm)
    12V 60Ah Camper 6
    28.0 Length x 17.6 Width x 17.2 Height

     THE BATTERY DIMENSIONS DOES NOT TAKE INTO ACCOUNT THE RING TERMINAL HEIGHT. PLEASE ADD RING TERMINAL AND BOLT HEAD HEIGHT TO THE DIMENSIONS

    Battery power Weight of battery (kg) Dimension of battery (cm)
    12V 150Ah 18 41.0L x 17.0W x 23.5H
    Battery power Weight of battery (kg) Dimension of battery (cm)
    12V 80Ah 9
    26 L x 16.5 W x 21 H
    Battery power Weight of battery (kg) Dimension of battery (cm)
    12V 20Ah 2.2 18.1 L x 7.7W x 16.7H
    Battery power Weight of battery (kg) Dimension of battery (cm)
    12V 200Ah 23 53.2L x 23.5W x 20.7H
    Battery power Weight of battery (kg) Dimension of battery (cm)
    12V 300Ah 28 53.2L x 23.5W x 20.7H
    Battery power Weight of battery (kg) Dimension of battery (cm)
    24V 150Ah 35 53.2L x 23.5W x 20.7H






    MSDS file - Hazmat

    For the T1 DIN Standard Battery posts with 8mm thread. Positive and negative pair. They make a good addition if you wish to maintain legacy connections. Dimensions of the posts are below:
